Tesla Wheel Sizes – What You Need To Know

Tesla Wheel Sizes for Tesla Vehicles Model S, Model 3 and Model X What you need to know about the wheels and tyres on your Tesla including offset, staggered and non staggered tyres sizes.

Model S Wheel Sizes


19″ Base Rim

These are the original Tesla Model S wheels that were standard equipment on all vehicles. They were replaced in early 2016 with the Slipstream wheels (below).
Non Staggered/Square Configuration.

Size + Offset
19×8.0″ +40
Bolt Pattern
5×120
Center Bore
64.1mm
Weight (per wheel)
29.5lbs (13.38kg)
Optional Extra? – N/A
Included Tyres
All Season:
Michelin Primacy MXM4 – 245/45R19 98W (Overall Diameter: 27.7″)
All Season:
Goodyear Eagle RS-A2 -245/45R19 98V (Overall Diameter: 27.7″)
Tesla Model S 19" Base Wheel

19″ SLIPSTREAM

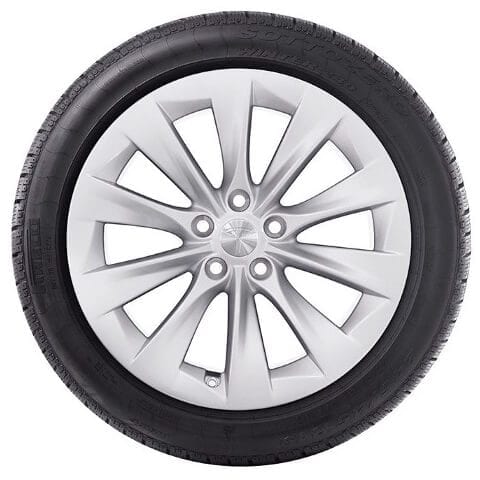

Tesla Model S Slipstream WheelThe “Slipstream” Wheels were introduced in Early-2016 as the standard option for all Model S vehicles. These replaced the original 19″ split-spoke wheels (above). Non Staggered/Square Configuration.

Size + Offset
19 x 8.0″ +40
Bolt Pattern
5×120
Centre Bore
64.1mm
Weight (per wheel)
29lbs (13.15kg)
Optional Extra? No – but wheel prices is about £290 inc VAT
Included Tyres
All Season:
Michelin Primacy MXM4 – 245/45R19 98W (Overall Diameter: 27.7″)
All Season:
Goodyear Eagle RS-A2 -245/45R19 98V (Overall Diameter: 27.7″)

19″ CYCLONE

The “Cyclone” Wheels were formerly an paid upgrade option available when purchasing a Model S (they were also available from Tesla). The Cyclone Wheel is now discontinued as an option.
Non Staggered/Square Configuration.

Size + Offset
19 x 8.0″ +40
Bolt Pattern
5 x 120
Center Bore
64.1mm
Weight (per wheel)
29.8lbs (13.52kg)
Optional Extra? Yes – when ordering a Model S. Alternatively, could be purchased as a wheel / tyre package from Tesla
Included Tyres
All Season:
Michelin Primacy MXM4 – 245/45R19 98W (Overall Diameter: 27.7″)
All Season:
Goodyear Eagle RS-A2 -245/45R19 98V (Overall Diameter: 27.7″)
Tesla Model S Cyclone Wheel

21″ TURBINE

Tesla-Model S Silver Turbine Wheel
Tesla-Model S Grey Turbine Wheel
Available as Tesla’s suggested upgrade for all “Performance” Model S vehicles in either a Silver or Metallic Grey finish, the 21″ Turbine is probably the most well-known wheel option for the Tesla Model S.
Normally offered as a “staggered” configuration, with a wider rear wheel / tyre, during 2015, Tesla briefly offered a “square” configuration, with all 4 wheels utilising the 21 x 8.5″ wheel before returning to the original staggered offering.

Size + Offset
21 x 8.5″ +40 (FRONT + REAR)
21 x 9.0″ +40 (REAR)
Bolt Pattern
5 x 120
Centre Bore
64.1mm
Weight (per wheel)
8.5″ Width: 29.8lbs (15.97kg)
9.0″ Width: 38lbs (17.25kg)
Optional Extra? Yes – additional when ordering a Model S. Alternatively, could be purchased as a wheel / tyre package from Tesla.
Included Tyres
Summer Performance:
Continental
Contisportcontact 5P –
245/35ZR21 96Y XL (FRONT) (Overall Diameter: 27.8″)
265/35ZR21 101Y XL (REAR) (Overall Diameter: 28.3″)
Summer Performance:
Michelin Pilot Sport PS2 –
245/35ZR21 96Y XL (FRONT) (Overall Diameter: 27.8″)
265/35ZR21 101Y XL (REAR) (Overall Diameter: 28.3″)

21″ ARACHNID

Available only as a reward through Tesla’s referral program, the Arachnid wheels are produced from forged aluminium for lighter weight, and are available in three colours – silver, gunmetal grey and black.  Staggered Configuration. These wheels are highly sought after in Tesla Circles. If you want a set, you’ll need to look on .

Size + Offset
21 x 8.5″ +40 (FRONT)
21x 9.0″ +40 (REAR)
Bolt Pattern
5 x 120
Ce
Optional Extra? (per wheel)
8.5″ Width: 25.9lbs (11.75kg)
9.0″ Width: 26.95lbs (12.22kg)
Optional Extraa? No – N/A
Included Tyres
Summer Performance:
Michelin Pilot Super Sport –
245/35ZR21 96Y XL (FRONT) (Overall Diameter: 27.8″)
265/35ZR21 101Y XL (REAR) (Overall Diameter: 28.3″)
Optional Extra?
Tesla Arachnid Wheel

Spare Tesla wheels are getting common place and easy to find, if you need a spare rim, or are looking for a complete set to allow swapping from winter to summer tyres etc, then is the place to look. You can also find locking


Model 3 Wheel Sizes


18″ AERO

These are the wheels included as standard on all Model 3 vehicles.

Size + Offset
18×8.5″ +40
Bolt Pattern
5×114.3
Center Bore
64.1mm
Weight (per wheel)
With Aero Cover: 23lbs (10.43kg)
Without Aero Cover: 21.6lbs (9.8kg)
Optional Extra? No – N/A
Included Tyres
All Season:
Michelin Primacy MXM4 – 235/45R18 98W XL (Overall Diameter: 26.3″ / Revolutions Per Mile: 790)
Tesla Model 3 Aero Wheel

19″ STILETTO

Tesla-Model 3 Stiletto WheelKnown as the “Sport” Wheel, the “Stiletto” is an optional upgrade when ordering a Model 3.

Size + Offset
19×8.5″ +40
Bolt Pattern
5 x 114.3
Centre Bore
64.1mm
Weight (per wheel)
25lbs (11.43kg)
Optional Extra? Yes – when ordering a Model 3. Alternatively, can be purchased as a winter wheel / tyre package from Tesla’s online store
Included Tyres
All Season:
Continental Procontact RX – 235/40R19 96W XL (Overall Diameter: 26.4″ / Revolutions Per Mile: 787)

20″ STILETTO

Starting in March 2018, Tesla began offering a 20″ version of their “Stiletto” Wheel / Tyre package in their USA online store.

Size + Offset
20 x 8.5″ +40
Bolt Pattern
5 x 114.3
Centre Bore
64.1mm
Weight (per wheel)
Pending
Optional Extra? Both – Included on Model 3 Performance vehicles
or additional as a wheel / tyre package from Tesla for non-Performance Model 3’s
Included Tyres
Summer Performance:
Michelin Pilot Sport 4S –
235/35ZR20 92Y (Overall Diameter: 26.5″ / Revolutions Per Mile: 786)
Tesla Model 3 Stiletto Wheel

Model X Wheel Sizes


20″ SLIPSTREAM

Tesla-Model X Slipstream Sonic Carbon Wheel The wheels included as standard on all Model X vehicles. The “Sonic Carbon” Grey version is available for an optional extra when ordering a Model X. Either version is also available as a winter wheel / tyre package from the Tesla.

Size + Offset
20 x 9.0″ +35
20 x 9.5″ +35
20 x 10.0″ +35 (only available briefly)
Bolt Pattern
5 x 120
Centre Bore
64.1mm
Weight (per wheel)
9.0″ Width: 32lbs (14.51kg)
9.5″ Width: 33.2lbs (15.06kg)
Optional Extra?
Yes – “Sonic Carbon” Grey additional option when configuring a Model X. Either Silver or Sonic Grey finishes are available from the Tesla stores as an winter wheel / tyre package.
Included Tyre
All Season:
Continental CrossContact LX Sport – 265/45R20 108V XL (FRONT) (Overall Diameter: 29.4″)
275/45R20 110V XL (REAR) (Overall Diameter: 29.7″)
Summer:
Michelin Latitude Sport 3 –
255/45R20 105Y XL (FRONT) (Overall Diameter: 29.1″)
275/45R20 110Y XL (REAR) (Overall Diameter: 29.8″)

  19″ CYCLONE

Tesla offers the Cyclone wheel through service centres included as a winter wheel / tyre package.

Size + Offset
19×8.5″ +35
Bolt Pattern
5×120
Center Bore
64.1mm
Weight (per wheel)
29lbs (13.15kg)
Additional Cost Option? Yes – As a winter wheel / tyre package from Tesla Service Centres

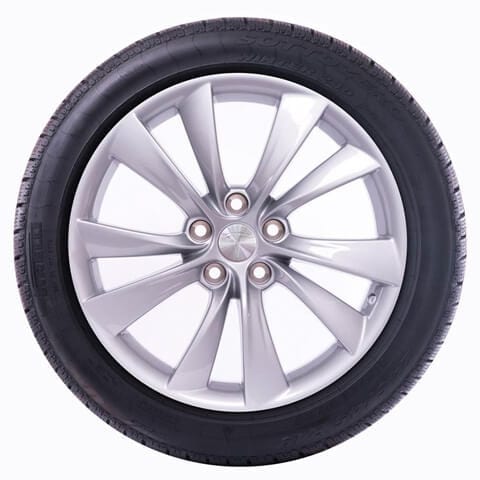

Model X 19" Cyclone Wheel and Winter Tire Package

20″ HELIX

Tesla Model X Helix WheelThe “Helix” Wheels were formerly an paid upgrade option available when purchasing a Model X. They were also previously offered included in a winter wheel / tyre package on the Tesla online store in the USA. The Helix Wheel is now discontinued.

Size + Offset
20×9.0″ +35
20×10.0″ +40
Bolt Pattern
5×120
Center Bore
64.1mm
Weight (per wheel)
~34lbs (15.4kg)
Additional Cost Option? Yes – When ordering a Model X. Alternatively, could be purchased as a wheel / tyre package from Tesla.
Included Tyre
All Season:
Continental CrossContact LX Sport – 265/45R20 108V XL (FRONT) (Overall Diameter: 29.4″)
275/45R20 110V XL (REAR) (Overall Diameter: 29.7″)
Summer:
Michelin Latitude Sport 3 –
255/45R20 105Y XL (FRONT) (Overall Diameter: 29.1″)
275/45R20 110Y XL (REAR) (Overall Diameter: 29.8″)

22″ TURBINE

The 22″ version of Tesla’s Turbine, it is typically found on “Performance” Model X vehicles in either a Silver or Onyx Black satin finish. The 22″ Turbine Wheel set is offered as a “staggered” configuration, with a wider rear wheel / tyre.

Size + Offset
22 x 9.0″ +35 (FRONT)
22 x 10.0″ +35 (REAR)
Bolt Pattern
5 x 120
Centre Bore
64.1mm
Weight (per wheel)
9.0″ Width: 37.6lbs (17.06kg)
10.0″ Width: 40.4lbs (18.33kg)
Optional Extra? Yes – when ordering a Model X. Alternatively, can be purchased as a wheel / tyre package from Tesla.
Included Tyre
All Season:
Pirelli Scorpion Zero –
265/35ZR22 102W XL (FRONT) (Overall Diameter: 29.3″)
285/35ZR22 106W XL (REAR) (Overall Diameter: 29.9″)

Summer Performance:
Goodyear Eagle F1 Asymmetric 3 –
265/35R22 102W XL (FRONT) (Overall Diameter: 29.3″)
285/35R22 106W XL (REAR) (Overall Diameter: 29.9″)
Tesla Model X Silver Turbine WheelTesla Model X Onyx Black Turbine Wheel
